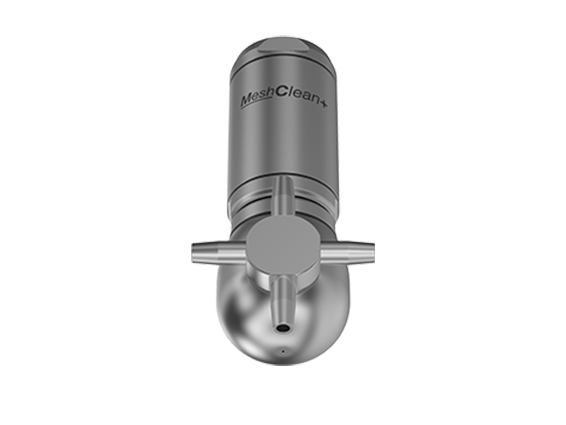

MeshClean+ 5T5 Rotating cleaning nozzle

The MeshClean+ is extremely effective thanks to the particularly powerful solid jet nozzles. It is suitable for medium to large tanks with persistent soiling. A special nozzle geometry ensures active self-cleaning. Due to its hygienic design, the MeshClean+ is predestined for the food and beverage industry as well as for the chemical and pharmaceutical industry.

Technical data (pdf, 85 KB)

ATEX

ATEX

Approved for use in an explosive atmosphere.

Conformity

Regulation (EC) No. 1935/2004

Regulation (EC) No. 1935/2004

FDA

FDA

Features

Max. tank diameter

Max. tank diameter1.64 – 57.74 ft

Materials

MaterialsStainless steel 1.4404 (316L)
PEEK
PTFE
EPDM
or FKM

Max. temperature

Max. temperature302 °F
302 °F (ATEX)

Filtration

FiltrationLine strainer with a mesh size of 0.2 mm/80 mesh

Recommended operating pressure

Recommended operating pressure72.52 psi

Installation

InstallationOperation in every direction is possible

Bearing

BearingBall bearing

Rotation monitoring sensor

Rotation monitoring sensorSensor compatible

Weight

Weight8.82 lbs

Operating mode

Our video demonstrates the operating mode of the rotating cleaning nozzle "MeshClean+" Series 5T5
